Product Description
| Model | Size | Power | Max. Suction | Q (L / min) | H (M) |

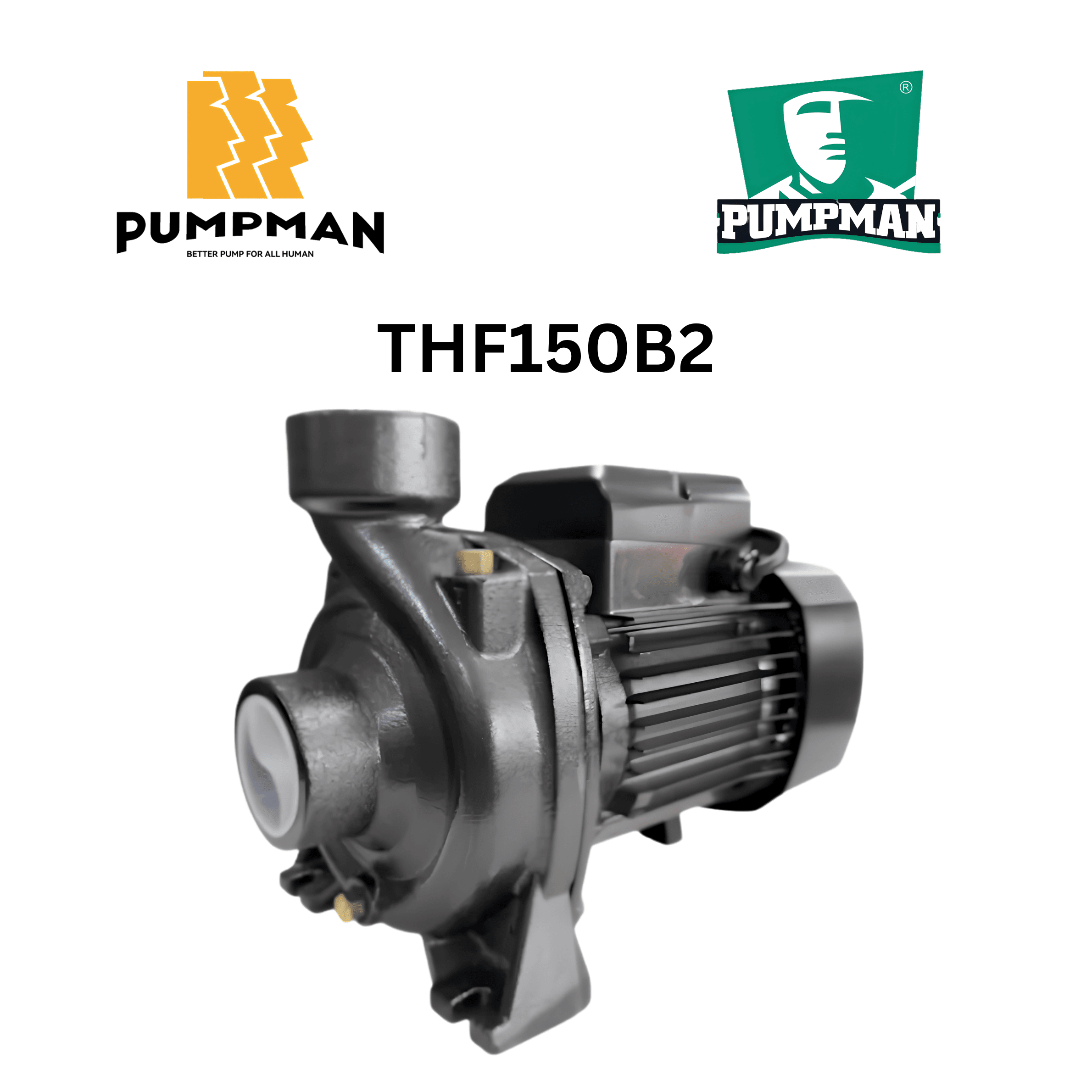

| THF(m)150B2 | 2″ x 2″ | 2HP 240V | 7m | 200~500 | 20.5~8 |
| 2HP 415V |
Motor and Pump Body
– Brass impeller
– Crash pad to reduce vibration & anti-noise
Advantages & Features
– Spiral flow path pump body design, more efficient.
– Turned graphite to ceramic mechanical seal, longer service life.
– The motor and pump are coaxially designed and stainless steel welded shaft for good rigidity and smooth running.
– The whole pump is compact, light and easy to install.
– Electrophoresis treatment of pump body and pump cover flow path parts. rust-resistant.
– Grade copper enameled wire, built-in thermal protection device
Working Conditions
– The medium temperature does not exceed + 40°C
– The PH of the medium is between 6.5-8.5
– The volume ratio of solid impurities is not more than 0.1% and the particle size is not more than 0.2mm
– The voltage fluctuation range is * 10% of the rated value
