Product Description

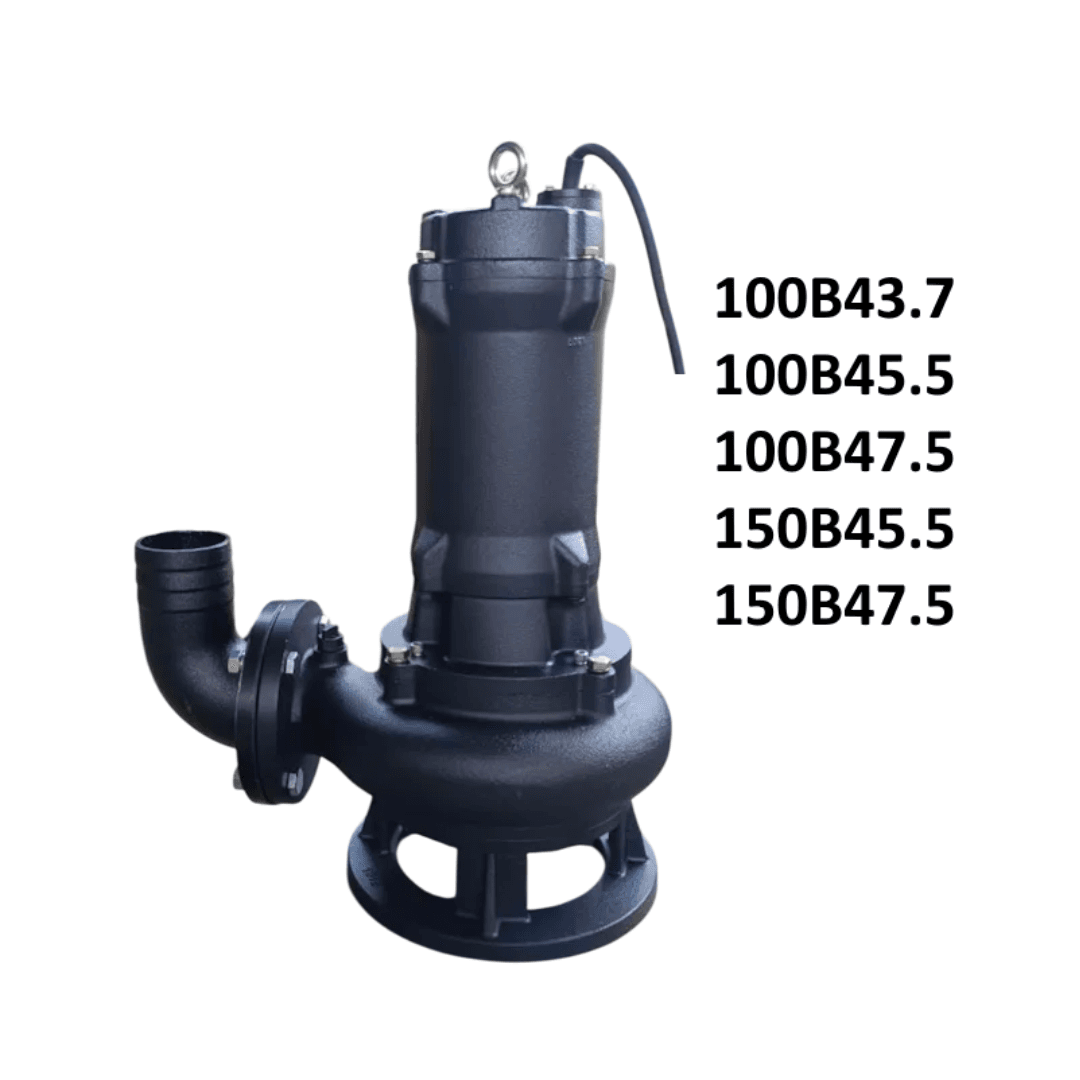

Meudy Sewage Pump – B Series
meudy b series performance| Model | Outlet (inch / mm) | Motor power (HP) | Voltage (V) | Rated capacity (m³/h) | Rated head (m) | Max capacity (m³/h) | Max head (m) | Impeller passage (mm) | RPM | Cable (mm²) | N.W. (kg) | G.W (kg) |
| 80B42.2 | 3 / 80 | 3 | 380 | 45 | 8 | 73 | 12 | 50 | 1450 | 1.5 | 78 | 87 |
| 80B43.7 | 3 / 80 | 5 | 380 | 45 | 13 | 90 | 17 | 50 | 1450 | 1.5 | 88 | 97 |
| 100B43.7 | 4 / 100 | 5 | 380 | 60 | 12 | 130 | 17 | 50 | 1450 | 1.5 | 90 | 99 |
| 100B25.5 | 4 / 100 | 7.5 | 380 | 65 | 15 | 110 | 25 | 30 | 2850 | 2.5 | 81 | 89 |
| 100B45.5 | 4 / 100 | 7.5 | 380 | 65 | 15 | 150 | 19 | 50 | 1450 | 2.5 | 143 | 156 |
| 100B27.5 | 4 / 100 | 10 | 380 | 65 | 22 | 145 | 35 | 35 | 2850 | 4 | 122 | 134 |
| 100B47.5 | 4 / 100 | 10 | 380 | 100 | 15 | 170 | 24 | 50 | 1450 | 4 | 159 | 172 |
| 100B411 | 4 / 100 | 15 | 380 | 100 | 22 | 190 | 31 | 50 | 1450 | 4 | 253 | 271 |
| 100B415 | 4 / 100 | 20 | 380 | 100 | 27 | 210 | 35 | 50 | 1450 | 6 | 275 | 293 |
| 100B419 | 4 / 100 | 25 | 380 | 100 | 31 | 200 | 38 | 50 | 1450 | 10 | 326 | 345 |
| 150B45.5 | 6 / 150 | 7.5 | 380 | 110 | 10 | 200 | 16 | 55 | 1450 | 2.5 | 154 | 167 |
| 150B47.5 | 6 / 150 | 10 | 380 | 150 | 10 | 240 | 16 | 75 | 1450 | 4 | 172 | 184 |
| 150B411 | 6 / 150 | 15 | 380 | 150 | 15 | 260 | 24 | 65 | 1450 | 4 | 256 | 274 |
| 150B415 | 6 / 150 | 20 | 380 | 150 | 20 | 290 | 29 | 65 | 1450 | 6 | 277 | 295 |
Certification: SPAN Certified
Model : 100B25.5
● Insulation Class : F
● Protection Class : IP68
● Water Temperature : up to 40°C
● PH : 6 to 10
● Density of Liquid : up to 1.3g/cm³
● Motor Protection : Built In
● Maximum Immersion Depth : 10m
● Cable Length : 8m
Model : 80B42.2/80B43.7/100B27.5/100B43.7/100B45.5/100B47.5/100B411/
100B415/100B419/150B45.5/150B47.5/150B411/150B415
● Insulation Class : F
● Protection Class : IP68
● Water Temperature : up to 40°C
● PH : 6 to 10
● Density of Liquid : up to 1.3g/cm³
● Motor Protection : Built In
● Maximum Immersion Depth : 20m
● Cable Length : 8m
