Product Description

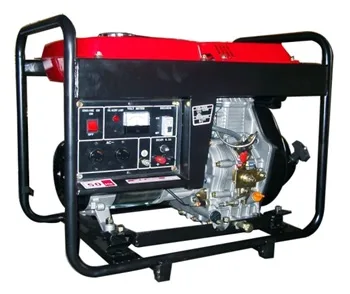

Benma Diesel Generator Set BM-M / BM-ME Series
| Model | BM5000M | BM5000ME | – | |
| Code | 5GF-M | 5GF-ME | 7GF-ME | |
Generator | Rated frequency | 50Hz | 50Hz | 50Hz |
| Rated power | 4.4kw | 6.3kw | ||
| Max. power | 4.8kw | 6.8kw | ||
| Rated voltage(AC) | 240v | 240v | 240v | |
| Rated current(AC) | 18.3A | 27A | ||
| Rated revolution | 3000rpm | |||
| Type and phase | Brushless , Single Phase | |||
| Power factor (COSΦ) | 1 | |||
| Excitation mode | Self excitation | |||
| DC output | 12V 8.3A | |||
| Operation mode | 12 hour continuous running | |||
| Structure mode | Frame | |||
| Connection mode | Transmission rigid connection | |||
Engine | Model | 186FGE | 192FD | |
| Type | 4-stroke, single cylinder, air-cooled, direct injection type. | |||
| Continuous power | 5.7kw | 8.1kw | ||
| Max. power | 6.3kw | 8.8kw | ||
| Bore x stroke | 86×70 | 92×75 | ||
| Displacement | 406cm3 | 498cm3 | ||
| Cooling system | Forced air-cooled system | |||
| Lubrication system | Pressure splash, duplex type lubrication | |||
| Lubrication oil | 1.65 litre | |||
| Start system | Recoil Start | Electric start | ||
| Fuel tank volume | 15L | |||
Unit | Dimension (cm) | 76x50x65 | 76x50x65 | 76x50x65 |
| Weight | 100kg | 100kg | 163kg | |
